AC Time Delay Relay, 50-60HZ, 110V/120V/220V, DIP Switch for Time Setting, for Small Power Water Pump, Automatic Door (2PCS)

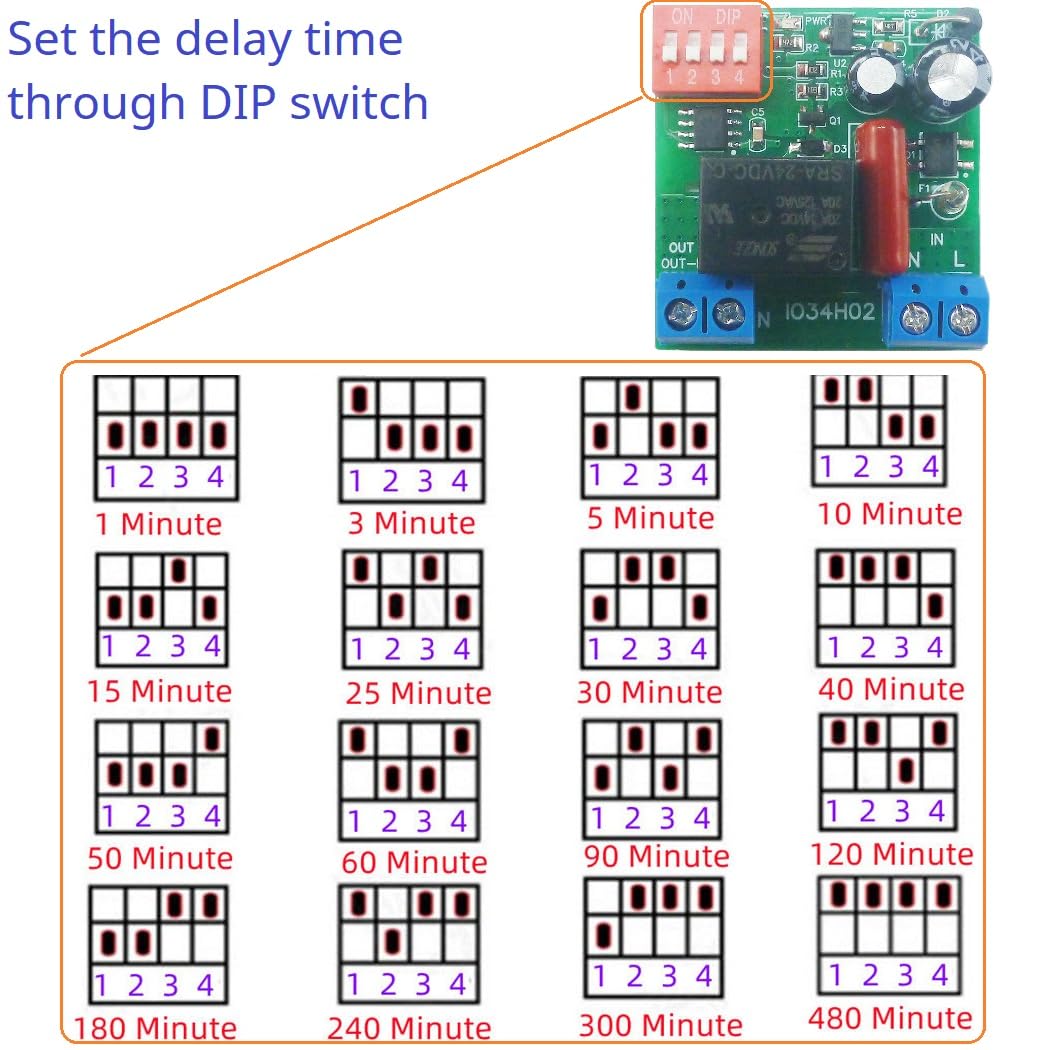

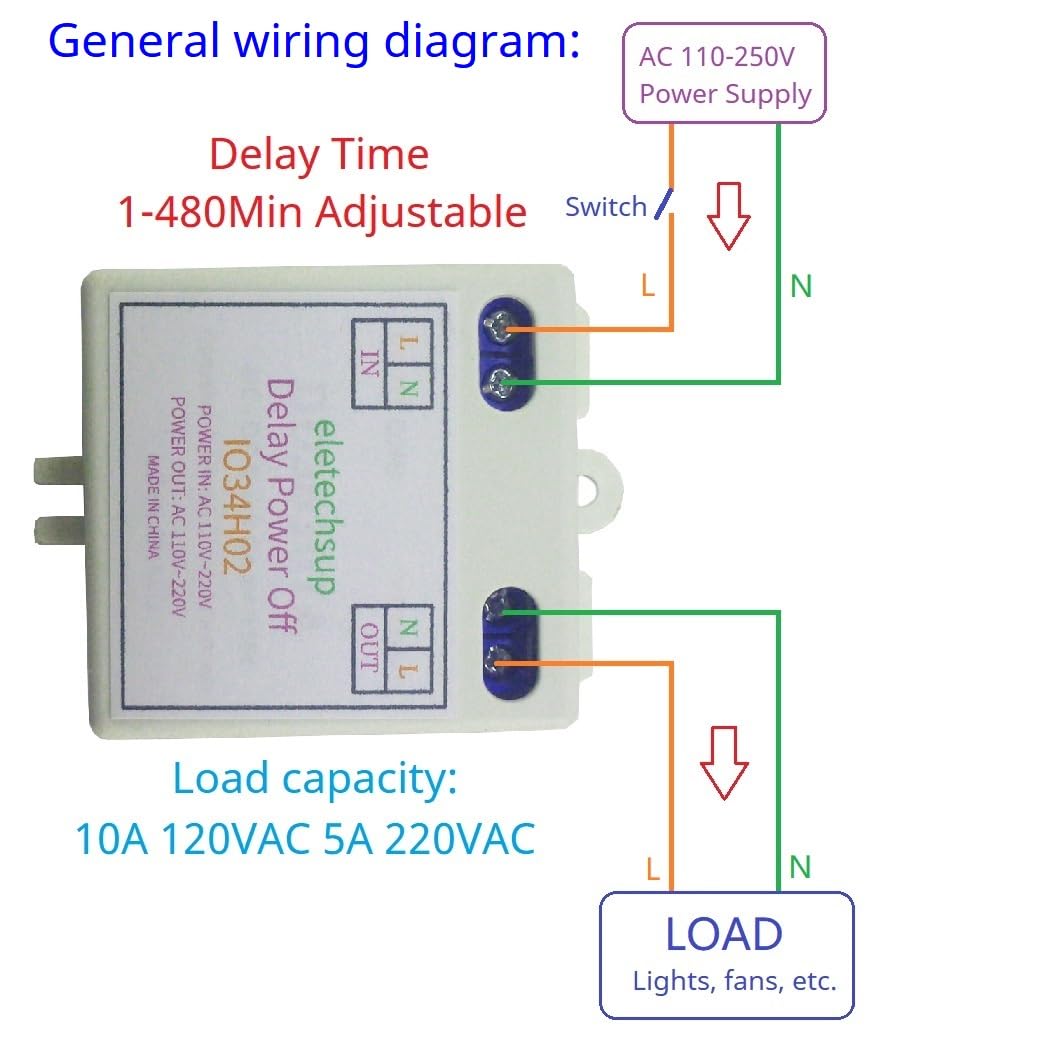

IO34H02 is a 110-220V simple time delay relay developed and designed by eletechsup. It has the functions of power-on and time-delayed closing. The delay time can be set from 1 to 480 minutes through the DIP switch.Product parameters:1. Brand: eletechsup2. Model: IO34H023. Load capacity: 10A 120VAC 5A 220VAC4. Working power consumption: 42mA5. Output voltage: AC 110-220V6. Power supply voltage: AC 110-220V7. Weight with shell: 27 grams8. Dimensions with shell: 44×40×21mm9. Unified length of wires: 50mm10. Maximum standby power consumption: 12mA11. Number of control channels: 1 output12. Working temperature: -25℃~85℃13. Working humidity: 5%~95%RH14. Shell: PC flame retardant material15. Function: Stop power supply after a delay,Delay Time 1-480Min Adjustable16.Control power: incandescent lamp 1000W (maximum), energy-saving lamp 300W (maximum)17. With LED indicator light to show the working status (steady on means working, flashing means the end of delay)18. Applicable scenarios: living room, kitchen, bathroom, bedroom, corridor, stairs, etc.19. Wide range of uses: such as exhaust fans, motors, air coolers, cooling fans, humidifiers, heaters, etc.20. 16 delay modes can be selected (1 minute, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 25 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes, 240 minutes , 300 minutes, 480 minutes)Note: If used for motors or water pumps, please do not exceed 100WModule function:This module is a delayed power-off module. When the set delay time expires, stop power supply.Working status:After the power is turned on, the indicator (PWR) will remain on; after the delay is over, the indicator (PWR) will continue to flash.How to use:①: Set the time you need to delay (no live settings are allowed);②: After checking that the wiring is OK, power on, the module starts to work after power on, (the indicator light is always on), and the module stops power supply when the time is up (indication light flashes).1. If it needs to be turned off in advance during use, directly disconnect the main power supply of the module.2. Start the second delay: re-power on.Delay time selection method:①: Refer to the delay mode table to select the time to be delayed;②: Toggle the DIP switch (red) according to the delay mode table;③: After setting, check the wiring and then power on.Note:When a new delay mode needs to be set, in order to ensure personal safety, it must be set in a power-off mode, and live operation is prohibited.General wiring diagram:SPDT Switch Control Wiring Diagram:How to set the delay time, open the shell and use the DIP switch to set the delay time:

• Load capacity: 10A 120VAC 5A 220VAC
• Working power consumption: 42mA
• Function: Stop power supply after a delay,Delay Time 1-480Min Adjustable
• Applicable scenarios: living room, kitchen, bathroom, bedroom, corridor, stairs, etc.
• Wide range of uses: such as exhaust fans, motors, air coolers, cooling fans, humidifiers, heaters, etc.
